[WPF] LiveCharts.WPF를 이용한 차트 그리기 (In xaml / In code)



WPF_Chart.zip

1.89MB

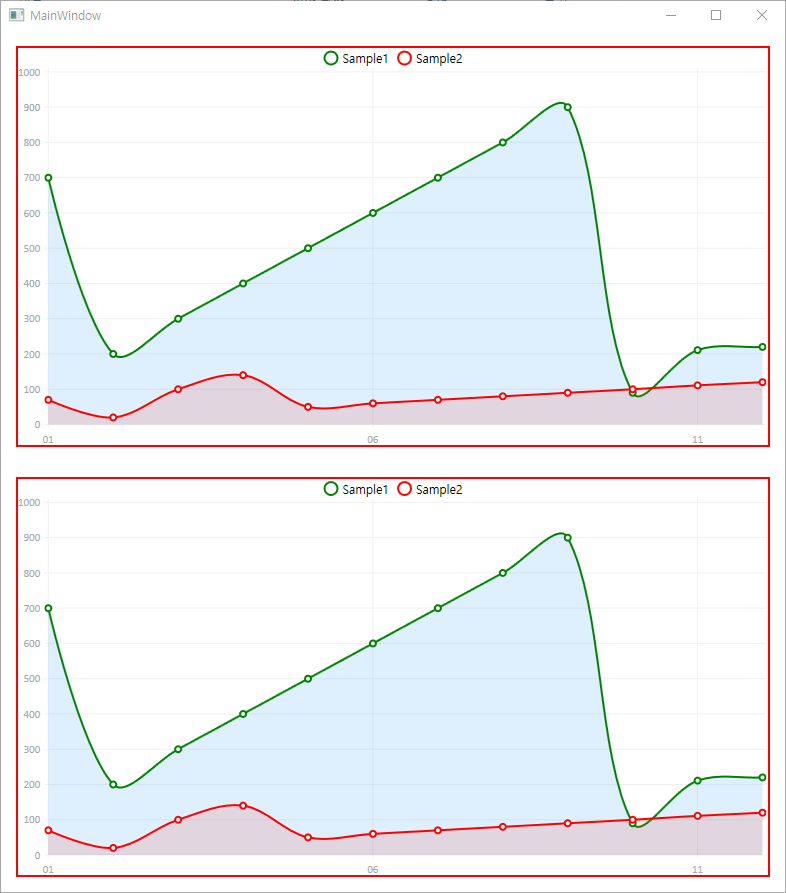

위 - Code에서 작성된 차트    아래 - Xaml에서 작성된 차트

NuGet : LiveCharts.Wpf

https://lvcharts.net/



Xaml

<Window x:Class="WPF_Chart.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WPF_Chart"
        xmlns:live="clr-namespace:LiveCharts.Wpf;assembly=LiveCharts.Wpf"
        mc:Ignorable="d"
        Title="MainWindow" Height="900" Width="800">
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="1*"/>
            <RowDefinition Height="1*"/>
        </Grid.RowDefinitions>

        <!--In Code-->
        <live:CartesianChart
            x:Name="chart"
            BorderBrush="Red" BorderThickness="2"
            LegendLocation="Top"
            Margin="15"/>

        <!--In Xaml-->
        <live:CartesianChart
            Grid.Row="1"
            BorderBrush="Red" BorderThickness="2"
            LegendLocation="Top"
            Margin="15">
            <live:CartesianChart.AxisY>
                <live:Axis MinValue="0" MaxValue="1000"/>
            </live:CartesianChart.AxisY>
            <live:CartesianChart.AxisX>
                <live:Axis Labels="01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12"/>
            </live:CartesianChart.AxisX>
            <live:CartesianChart.Series>
                <live:LineSeries Stroke="Green" Title="Sample1" Values="700, 200, 300, 400, 500, 600, 700, 800, 900, 90, 211, 220"/>
                <live:LineSeries Stroke="Red" Title="Sample2" Values=" 70, 20, 100, 140, 50, 60, 70, 80, 90, 100, 111, 120"/>
            </live:CartesianChart.Series>
        </live:CartesianChart>
    </Grid>
</Window>



Code

using System.Collections.Generic;
using System.Windows;
using System.Windows.Media;

namespace WPF_Chart
{
    /// <summary>
    /// MainWindow.xaml에 대한 상호 작용 논리
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();

            //범례 위치 설정
            chart.LegendLocation = LiveCharts.LegendLocation.Top;

            //세로 눈금 값 설정
            chart.AxisY.Add(new LiveCharts.Wpf.Axis { MinValue=0, MaxValue = 1000 });

            //가로 눈금 값 설정
            chart.AxisX.Add(new LiveCharts.Wpf.Axis { Labels = new string[] { "01", "02", "03", "04", "05", "06", "07", "08", "09", "10", "11", "12"} });



            //모든 항목 지우기
            chart.Series.Clear();

            //항목 추가
            chart.Series.Add(new LiveCharts.Wpf.LineSeries()
                                {
                                    Title = "Sample1",
                                    Stroke = new SolidColorBrush(Colors.Green),
                                    Values = new LiveCharts.ChartValues<double>(new List<double> { 700, 200, 300, 400, 500, 600, 700, 800, 900, 90, 211, 220 })
                                }
            );
            chart.Series.Add(new LiveCharts.Wpf.LineSeries()
                                {
                                    Title = "Sample2",
                                    Stroke = new SolidColorBrush(Colors.Red),
                                    Values = new LiveCharts.ChartValues<double>(new List<double> { 70, 20, 100, 140, 50, 60, 70, 80, 90, 100, 111, 120 })
                                }
            );

        }
    }
}
