[ASP.Net Core / Blazor] Swagger 연동



aspnetcore_swagger_sample.zip

0.14MB

---

ASP.Net Core에서 Swagger 사용하기 - nuget에서 Swashbuckle.AspNetCore 설치

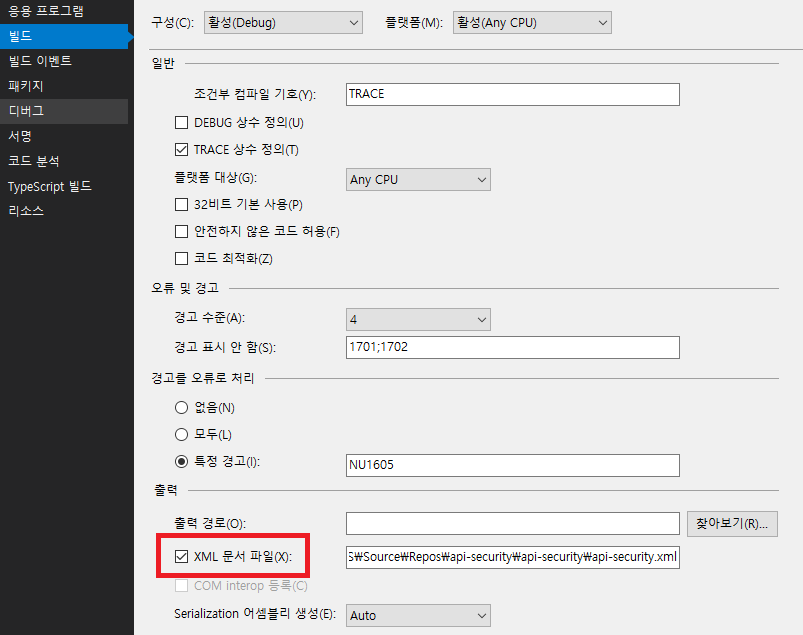

프로젝트 속성 - 빌드 - XML 문서 파일 항목 체크(summary값 xml로 출력)

---

Startup.cs의 ConfigureServices 함수에 "#region Create Swagger Document" 붙여넣기

public void ConfigureServices(IServiceCollection services)
{
    services.AddMvc().SetCompatibilityVersion(CompatibilityVersion.Version_2_1);
////////////////////////////////////////////////////////////////////////
    #region Create Swagger Document
    //스웨거 문서정보 생성.
    services.AddSwaggerGen(o =>
    {
        o.SwaggerDoc("v1"
            , new Microsoft.OpenApi.Models.OpenApiInfo()
            {
                Title = "aspnetcore_swagger_sample",
                Description = "swagger 사용을 위한 예제",
                Version="V1",
                License = new Microsoft.OpenApi.Models.OpenApiLicense()
                {
                    Name="virtualgiraffe.tistory.com",
                    Url= new Uri("http://virtualgiraffe.tistory.com")
                }
            });
         //애플리케이션의 기본 경로
         var xmlFile = $"{System.Reflection.Assembly.GetExecutingAssembly().GetName().Name}.xml";
         var xmlPath = System.IO.Path.Combine(AppContext.BaseDirectory, xmlFile);
         //xml 경로
         o.IncludeXmlComments(xmlPath, includeControllerXmlComments: true);
    });
    #endregion
////////////////////////////////////////////////////////////////////////
}

---

Startup.cs의 Configure함수에 "#region Swagger UI" 붙여넣기

public void Configure(IApplicationBuilder app, IHostingEnvironment env)
{
////////////////////////////////////////////////////////////////////////
    #region Swagger UI
    //스웨거 미들웨어 설정
    app.UseSwagger();

    //스웨거 UI 활성화
    app.UseSwaggerUI(c =>
    {
        c.SwaggerEndpoint("/swagger/v1/swagger.json", "My API V1");

        //접속 경로 / 미입력 시 swagger
        //c.RoutePrefix = "swagger-sample";
    });
    #endregion
////////////////////////////////////////////////////////////////////////
    if (env.IsDevelopment())
    {
        app.UseDeveloperExceptionPage();
    }
    else
    {
        app.UseHsts();
    }

    app.UseHttpsRedirection();
    app.UseMvc();
}

---

host/[c.RoutePrefix 값] 으로 접근

(https://localhost:44314/swagger-sample)



---

Blazor에서 Swagger 사용하기 - nuget에서 Swashbuckle.AspNetCore 설치



Program.cs - line 9에 아래 내용 추가

// Swagger
builder.Services.AddSwaggerGen();



Program.cs - line 33에 아래 내용 추가

app.UseSwagger();
app.UseSwaggerUI(c =>
{
    c.SwaggerEndpoint("/swagger/v1/swagger.json", "Blazor API V1");
});

using Microsoft.AspNetCore.ResponseCompression;

var builder = WebApplication.CreateBuilder(args);

// Add services to the container.

builder.Services.AddControllersWithViews();
builder.Services.AddRazorPages();

#region Swagger - 1
builder.Services.AddSwaggerGen();
#endregion

var app = builder.Build();

// Configure the HTTP request pipeline.
if (app.Environment.IsDevelopment())
{
    app.UseWebAssemblyDebugging();
}
else
{
    app.UseExceptionHandler("/Error");
    // The default HSTS value is 30 days. You may want to change this for production scenarios, see https://aka.ms/aspnetcore-hsts.
    app.UseHsts();
}

app.UseHttpsRedirection();

app.UseBlazorFrameworkFiles();
app.UseStaticFiles();

#region Swagger - 2
app.UseSwagger();
app.UseSwaggerUI(c =>
{
    c.SwaggerEndpoint("/swagger/v1/swagger.json", "Blazor API V1");
});
#endregion

app.UseRouting();


app.MapRazorPages();
app.MapControllers();
app.MapFallbackToFile("index.html");

app.Run();

샘플 코드
